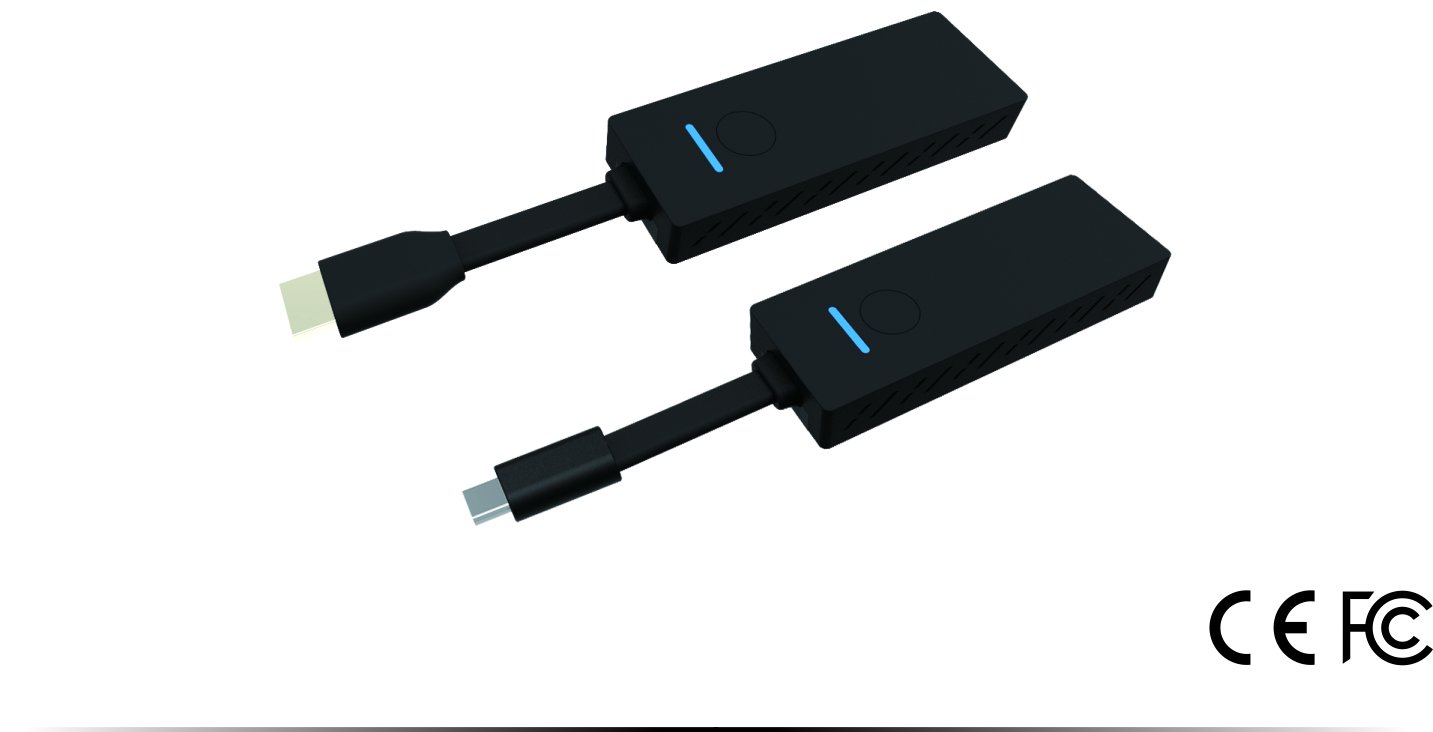

G405 / G405C 4K ClickCast Dongle
• OS: Linux, Plug and Play, auto connection.
• Excellent dynamic and static video quality
• Support multiple TX to one RX
• True 4K wireless transmission through WiFi 11ac (5G, 2T2R, MIMO)
• Up to 50 meters transmission (clear line of sight)
• Auto pair & connection, Auto channel selection, Plug & Play
Features
Features | Description |
Video input | Up to 4K30 |
vLink seamless technology | Super smoothly playback |
Video output | Up to 4K60 |
Audio | Stereo, quality 16bits 48KHz |
Wireless Channel | IEEE 802.11ac, 5GHz, 2T2R |
Latency | Around 90~120ms latency |
HDMI Version | HDMI 2.0 with HDCP2.2 |
Authentication Protocol | WPA2 (WPA-PSK / WPA2-Enterprise) |
Security | AES 128 bit |
Platform supported | Any devices with HDMI jack |
Distance | About 50 meters in the clear line of sight |
G405TX (Transmitter):
Interface | HDMI in x 1, Type c x1， Button x 1 |
LED | Blue |
Power supply | DC 5V/1A |
Power consumption | About 5W |
Dimension | 100x35x15mm |
Weight | 32g |
G405C TX (Transmitter):
Interface | Type C in x 1, Button x 1 |
LED | Blue |
Power supply | DC 5V/1A |
Power consumption | About 5W |
Dimension | 100x35x15mm |
Weight | 32g |
G405RX (Receiver):
Interface | HDMI in x 1, Type c x1， Button x 1 |
LED | Blue |
Power supply | DC 5V/1A |
Power consumption | About 5W |
Dimension | 100x35x15mm |
Weight | 32g |
Temperature Range:
Operating | 0°C to +40°C (+32°F to +104°F) |
Storage: | -10°C to +60°C (+14°F to +140°F) |
Humidity:
Operating | 10% to 80% relative humidity |
Storage | 5% to 90% relative humidity |
Package Contents
G405
• G405TX (Transmitter) X1
• G405RX (Receiver) X1
• USB power cable (Type C to USB Type A) X2
• Quick Start Guide
G405C
• G405CTX (Transmitter) X1
• G405RX (Receiver) X1
• USB power cable (Type C to USB Type A) X1
• Quick Start Guide
Package Information
Dimensions of Device | Weight (g) | Dimensions of Giftbox ( L x W x H cm) | Weight (g) | Dimensions of Carton ( L x W x H cm) | Q'TY / Carton | G.W. (Kg) | |
10*3.5*1.5 | 32 |
| g |
|
| 10 |
|
